基本参数
| 电压(Rated voltage)-UL: | - |
| 电流(Rated current)-UL: | - |
| 电压(Rated voltage)-IEC: | 400V |
| 电流(Rated current)-IEC: | 32A |
| 线径(Wire range)-UL: | 28-12AWG |
| 线径(Wire range)-IEC: | 0.08-2.5mm² |
| 剥线长度(Wire stripping length): | 9-10mm / 0.35-0.39inches |
| 尺寸(Size): | 20.5x17x14.5 |
| 材质(Material quality): | PA66 |
| 阻燃等级(Flame Rating): | UL94-V0 |
| 导体材料(Conductor material): | 铝，铜 |
| 位数(Pole number): | 2P，3P，5P |
| 使用温度(Operating temperature): | Max.40℃ |
| 认证(Approval): |   |
| 产品名称 | 尺寸 | 线径 | 位数 | 产品型号 | 3D下载 | 2D下载 |
| 线对线端子222 | 20.5x12.4x14.5 | 28-12AWG/0.08-2.5mm² | 2P | 222-2P | ||
| 线对线端子222 | 20.5x17x14.5 | 28-12AWG/0.08-2.5mm² | 3P | 222-3P | ||
| 线对线端子222 | 20.5x26.6x14.5 | 28-12AWG/0.08-2.5mm² | 5P | 222-5P |

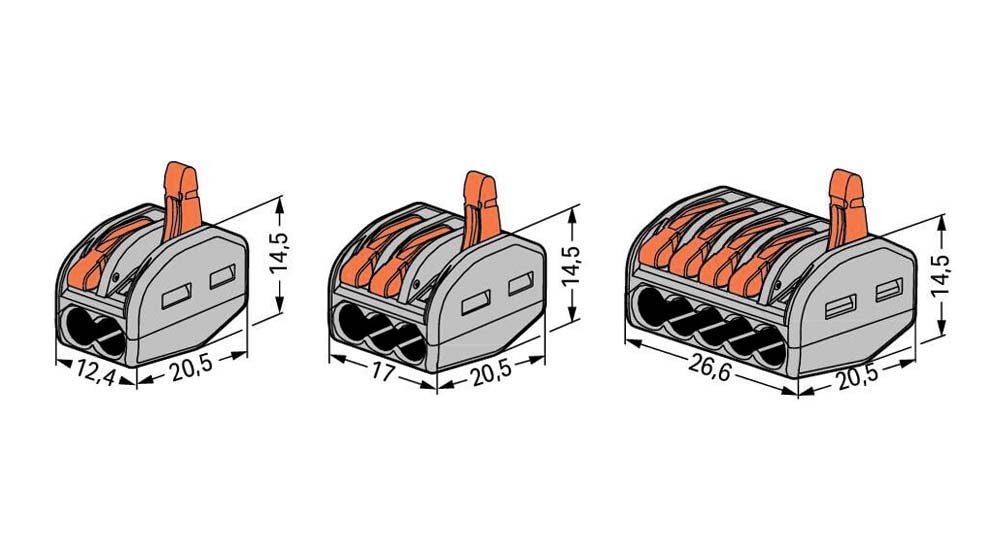

尺寸图
|
